# Building Java Programs, 3rd edition

## Lab: Expressions and Variables

Except where otherwise noted, the contents of this document are Copyright 2013 Stuart Reges and Marty Stepp.

lab document created by Marty Stepp, Stuart Reges and Whitaker Brand

# Lab goals

Goals for this problem set:

• write and evaluate expressions to compute numeric values
• use variables to store results of a computation into memory

# Expressions

Recall that Java has expressions to represent math and other computations. Expressions may use operators, which are evaluated according to rules of precedence. Every expression produces a value of a given type.

Type Description Example Result
`int` integers (up to 231 - 1) `3 + 4 * 5` `23`
`double` real numbers (up to 10308) `3.0 / 2.0 + 4.1` `5.6`
`String` text characters `"hi" + (1 + 1) + "u"` `"hi2u"`

# Exercise : Expressions (2.1)

Write the results of each of the following expressions. If you're stuck, ask a TA or neighbor.

 `12 / 5 + 8 / 4` `4` `3 * 4 + 15 / 2` `19` `-(1 + 2 * 3 + (1 + 2) * 3)` `-16` `42 % 5 + 16 % 3` `3` `2.5 * 2 + 17 / 4` `9.0` `4.5 / 3 / 2 + 1` `1.75`

# Exercise : More expressions (2.1)

Write the results of each of the following expressions.

 `2 + 6 + "cse 142"` `"8cse 142"` `"cse 142" + 2 + 6` `"cse 14226"` `1 + 9 / 2 * 2.0` `9.0` `46 / 3 / 2.0 / 3 * 4/5` `2.0` `50 / 9 / 2.0 + 200 / 10 / (5.0 / 2)` `10.5`

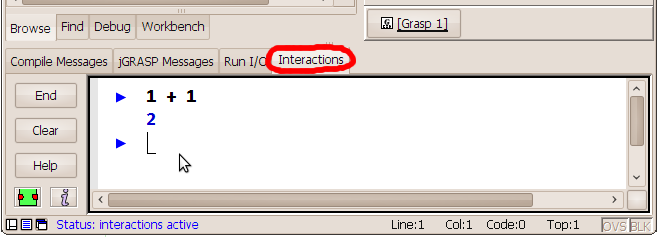

# jGRASP Interactions Pane

• jGRASP has a useful feature called the Interactions Pane that allows you to type in Java expressions or statements one at a time and instantly see their results.
• To use it, run jGRASP and then click the "Interactions" tab near the bottom.

continued on the next slide...

# Exercise : Using jGRASP Interactions Pane

In this exercise, you'll use the Interactions Pane to quickly discover the result of some expressions that would be difficult to evaluate by hand. Copy/paste each expression below into the Interactions Pane to evaluate it, then input the answer into this slide.

 `123 * 456 - 789` `55299` `3.14 + 1.59 * 2.65` `7.3535` `2 * 2 * 2 * 2 * 2 * 2 * 2 * 2 * 2 * 2` `1024` `2 + 2 + "xyz" + 3 + 3` `"4xyz33"`

(For the last expression, the Interactions Pane doesn't put `""` quotes around Strings when displaying results, so you must add those yourself if needed. For example, if the Interactions Pane gives you a result of `abc123`, it should be written here as `"abc123"`.)

# Variables

Recall that you can use a variable to store the results of an expression in memory and use them later in the program.

```type name;                       // declare
name = value or expression;        // assign a value
...
type name = value or expression;   // declare-and-initialize together
```

Examples:

```double iphonePrice;
iPhonePrice = 299.95;

int siblings = 3;
System.out.println("I have " + siblings + " brothers/sisters.");
```

# Exercise : Variable declaration syntax

Which of the following choices is the correct syntax for declaring a real number variable named `grade` and initializing its value to `4.0`?

# Exercise : Variable assignment syntax

Suppose you have a variable named `grade`, set to `1.6`:

```double grade = 1.6;   // uh-oh
```

Suppose later in the program's code, we want to change the value of `grade` to `4.0`. Which is the correct syntax to do this?

# Exercise : Variable mutation

Suppose you have a variable named `balance`, set to `463.23`:

```double balance = 463.23
```

Suppose later in the program's code, we want to add 5 to the account balance. Which is a correct statement to do this?

# Exercise : `a`, `b`, and `c`

What are the values of `a`, `b`, and `c` after the following statements? Write your answers in the boxes on the right.

```int a = 5;
int b = 10;
int c = b;

a = a + 1;            // a? 6
b = b - 1;            // b? 9
c = c + a;            // c? 16
```

# Exercise : Syntax errors

• The following program contains 9 mistakes! What are they? Copy and paste the following code into jGRASP and correct the various mistakes. The answer is on the next 2 slides if you need some help.  ``` 1 2 3 4 5 6 7 8 9 10 11 12 13 ``` ```public class Oops { public static void main(String[] args) { int x; System.out.println("x is" x); int x = 15.2; // set x to 15.2 System.out.println("x is now + x"); int y; // set y to 1 more than x y = int x + 1; System.out.println("x and y are " + x + and + y); } } ```

1. line 4: missing `+` between `"x is"` and `x`
2. line 4: cannot print the value of `x` before assigning it a value
3. line 6: cannot assign `15.2` into a variable of type `int`
4. line 6: should not redeclare the variable's type
5. line 7: `"` mark should be between `now` and `+`
6. line 10: should not write the word `int` here
7. line 10: variable `y` should be same type as `x`
8. line 10: does not properly set `y` to be 1 more than `x` (should not write the word `int` here)
9. line 11: `and` should be in quotes with surrounding spaces

# Exercise - corrected version

• Here is a corrected version of the program:
```public class Oops {
public static void main(String[] args) {
double x = 0.0;
System.out.println("x is" + x);

x = 15.2;       // set x to 15.2
System.out.println("x is now " + x);

double y;       // set y to 1 more than x
y = x + 1;
System.out.println("x and y are " + x + " and " + y);
}
}
```

# Exercise : `i`, `j`, and `k`

What are the values of `i`, `j`, and `k` after the following statements?

```int i = 2;
int j = 3;
int k = 4;
int x = i + j + k;

i = x - i - j;            // i? 4
j = x - j - k;            // j? 2
k = x - i - k;            // k? 1
```

# Exercise : Equation

Suppose you have a real number variable `x`. Write a Java expression that computes a variable named `y` storing the following value:

y = 12.3x4 - 9.1x3 + 19.3x2 - 4.6x + 34.2

(We haven't learned a way to do exponents yet, but you can simulate them using several multiplications.)

Use the example program on the next slide to test your code.

# Exercise - Example code

Copy/paste this program into jGRASP to test your solution.

```// expected output:
// y is 7043.7

public class EquationY {
public static void main(String[] args) {
double x = 5;

double y = put your expression for y here ;

System.out.println("y is " + y);
}
}
```

```double y = 12.3*x*x*x*x - 9.1*x*x*x + 19.3*x*x - 4.6*x + 34.2;
```

If you want an added challenge, try to come up with a way to compute the above value while using the `*` operator no more than 4 times.

```double y = (((12.3 * x - 9.1) * x + 19.3) * x - 4.6) * x + 34.2;
```

# Exercise : Birthday variables

• Create a complete Java program in a class named `Bday` that declares four variables and assigns appropriate values to them.
```My birthday is 9/19, and Suzy's is 6/14.
